Configuration and Usage

Table of Contents

This page

• Configuration
• Usage
  • Data Storage
  • Design
    • Dark Mode (default)
    • Light Mode / Solarized Light
    • Extra Dark Mode
  • Markdown Syntax and Features
  • Page names and hierarchy
  • Favorites
  • Code
  • Todos
  • Queries
    • Query Page Hierarchy
    • Query Todos
    • Query Backlinks
    • Query Render Assets (“insert-content-from-file”)
    • Query Blocks
• History

Further Reading

• Overview
• idea and technical concept
• Install + Run
• Migrate Your Existing Logseq Graph
• Configuration and Usage
• Development Guide and Contribution Guidelines
• Changelog

Configuration

The configuration is done in the config.json file in the directory ~/.local/share/looksyk. This path can be changed with the environment variable LOOKSYK_CONFIG_PATH.

The default graph location is in ~/graph (or the configured location in the ~/.local/share/looksyk/config.json).

The command looksyk accepts the following command line arguments:

• --graph-location to specify the location of the graph (default: ~/graph)
• --port to specify the port of the backend (default: 11000)
• --window-width to specify the width of the window (default: 1200)
• --window-height to specify the height of the window (default: 800)
• --window-zoom to specify the zoom level of the window (default: -0.6)

Usage

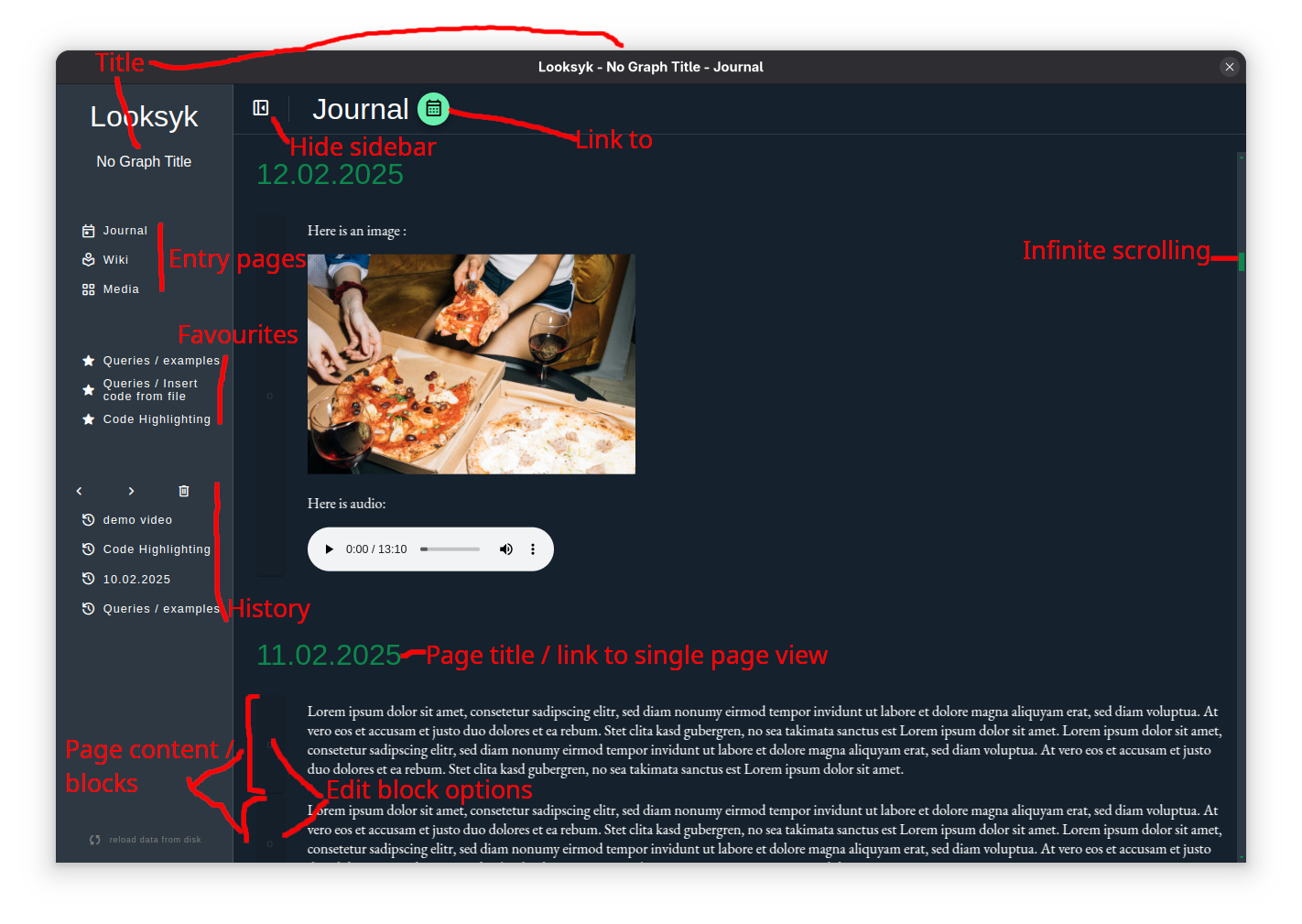

Overview of Looksyk’s basic features in the Journal view.

Overview of Looksyk’s basic features in the Page view.

Data Storage

The graph folder in the home directory contains all data.

• pages contains all pages
• journals contains all journals
• assets contains all media files (images, videos, audio files, text files, PDFs), deduplicated by checksum
• config contains the configuration
  • config.json contains the configuration (design, favourites)
  • media.json contains all the checksums of the media files

Design

The design is based on the Material Design guidelines.

There are two ways to customize the design:

• Changing predefined color variables in the config/config.json file (see description below)
• Adding custom CSS in the config/user-theme.css file.

The following color values are supported:

• Predefined browser-colors (e.g. black, white)
• RGB rgb(R, G, B) (e.g. rgb(255, 0, 0))
• RGBA rgba(R, G, B, A) (e.g. rgba(255, 0, 0, 0.5))
• Hex #RRGGBB (e.g. #FF0000)
• HSL hsl(H, S%, L%) (e.g. hsl(0, 100%, 50%))
• HSLA hsla(H, S%, L%, A) (e.g. hsla(0, 100%, 50%, 0.5))

The design consists of the following elements:

• primaryColor is the color of the primary elements (e.g. links, buttons)
• backgroundColor is the color of the background
• foregroundColor is the color of the text
• primaryShading is the color of the shading, used for the sidebar, the hover effect and the active element

Inspire yourself with the following examples:

Dark Mode (default)

Configuration:

"design": {
"primaryColor": "#0c884c",
"backgroundColor": "#15212D",
"foregroundColor": "white",
"primaryShading": "rgba(255, 255, 255, 0.1)"
}

Light Mode / Solarized Light

Configuration:

"design": {
"primaryColor": "#859900",
"backgroundColor": "#fdf6e3",
"foregroundColor": "#002b36",
"primaryShading": "rgba(0, 0, 0, 0.1)"
}

Extra Dark Mode

Configuration:

"design": {
"primaryColor": "#859900",
"backgroundColor": "black",
"foregroundColor": "white",
"primaryShading": "rgba(255, 255, 255, 0.1)"
}

Markdown Syntax and Features

• [[a link]] creates a link to a page, typing [[ opens the content assist in “insert link mode”
• Ctrl+Enter creates a new block
• Insert emojis with :emoji: (all emojis from openmoji available)
• Ctrl+Space (alternative 1: ⌥ meta + Space, alternative 2: Ctrl + k e.g. for MacOS / Arch) opens the content assist
  • With open markdown block -> “insert mode”
  • With no open markdown block -> “navigation mode”
• Alt+Left Navigate to the previous page
• Alt+Right Navigate to the next page
• Ctrl+R Refresh the current page
• Lists inside of blocks are supported.
  • Unordered lists are supported with * (and not with -, because - starts a new block)
  • Ordered lists are supported with 1., 2. …
• Ctrl+Shift+F opens the content assist in “search mode” (case-sensitive search across all pages and journals)
• Ctrl++ / . and Ctrl+- zoom in and out, Ctrl+ 0 resets the zoom

Page names and hierarchy

• Every tag [[myTag]] links to a page with the name myTag
• To create a hierarchy, use the / character in the page name. [[myTag / mySubTag]] creates a page mySubTag with the parent tag myTag and the parent tag myTag
• You can navigate to the parent page by clicking on the parent tag in the page header
• You can query the page hierarchy with the query page-hierarchy (see page hierarchy)

Favorites

• You can mark a page as favorite by clicking on the star next to the page title
• Favorites are displayed in the sidebar
• You can reorder the favorites by dragging them

Code

• Code block start with three backticks and the language name (e.g. ```rust)
• Code blocks are highlighted with highlightjs. For proper highlighting, the language name must be provided
• Code blocks can be inserted with the query insert-file-content ( see render assets)

Todos

• Todo-blocks are blocks with a leading [ ] for todo or [x] for done. The rendered block has a checkbox that can be toggled
• You can query todos with the query todos (see todos)
• A todo block can be associated with a tags.
  • The todo is always tagged with the tag of the page it is on. If the todo is on a page with the tag myTag, the todo is also tagged with myTag.
  • Furthermore, the todo can be tagged with a custom tag. All tags that are in the todo block are associated with the todo.
  • All tags in previous blocks that have a lower indentation will also be associated with the todo.

Templates

Pages that start with the prefix Template / are treated as templates. Templates can easily inserted by the content-assist when editing a page.

The first block of a template is appendet to the current block in edit, all following blocks are inserted as new blocks. This allows you to create templates with multiple blocks, which are inserted as new blocks in the current page. Templates can be used to create reusable content, such as checklists, meeting notes, or project plans.

The indentation of the blocks in the template is preserved, so you can create nested blocks. The initial block in edit is considered as starting-point, the template is inserted at the same indentation level and the following blocks are inserted with the relative indentation to the first block.

Queries

Queries are placeholders for dynamic content in Markdown. The result of the query is calculated and displayed dynamically at runtime, whereby only the query syntax and not the result is stored in the Markdown file on disk.

Queries are particularly suitable for three problems:

• Content that changes continuously over time and where the references should be dynamically adapted across all pages. For example, “Which todos for the tag “myTag” are not yet completed?” or “which subpages does the page myTag have?”.
• Content that is not stored in the Markdown file, but should be displayed in the Markdown file. For example, “Insert the content of the file myFile.asdf as a code block” or “Insert the content of the file myFile.mp4 as a video”.
• Content that is not supported by the Markdown standard, but should be displayed in the Markdown file. For example, “ Insert a video” or “Insert an audio file”.

Currently,all queries must be inserted exactly as described. Parameters cannot yet be swapped or omitted.

Query Page Hierarchy

Quick examples:

 Show a list of links
 {query: page-hierarchy root:"myRootTag" display:"inplace-list" }

 Show the count
 {query: page-hierarchy root:"myRootTag" display:"count" }

Display types:

• inplace-list
  • Creates a list of the selected pages in the markdown-block. Each item is prefixed with a icon, and the location as link. The list is not modifiable.
  • Query without trailing slash
  • Result
  • Query with trailing slash
  • Result
• count
  • Creates a number of the selected pages in the markdown-block.
  • Query
  • Result

Query Todos

Quick examples:

 Show a list of todos with a checkbox and a link to the source file. The list is appended to the end of the current block
 {query: todos tag:"myTag" state:"todo" display:"referenced-list" }

 Show a list of todos (not modifiable, but renders in place)
 {query: todos tag:"myTag" state:"todo" display:"inplace-list"}

 Show the count of todos
 {query: todos tag:"myTag" state:"todo" display:"count" }

 Show done todos
 {query: todos tag:"myTag" state:"done" display:"referenced-list" }

Display-types:

• referenced-list
  • Creates a list of the selected todos at the end of the current block. Each item contains a checkbox and a link to the source file. If the checkbox is clicked, the todo is marked as done. Query-results can be stacked.

  • Query



  • Result



• inplace-list
  • Creates a list of the selected todos in the markdown-block. Each item is prefixed with a icon. The list is not modifiable.

  • Query



  • Result



  • Result (done)



• count
  • Creates a number of the selected todos in the markdown-block.

  • Query



  • Result



Query Backlinks

 Show a list of backlinks
 {query: references-to tag:"myTag" display:"referenced-list" }

 Show the count
 {query: references-to tag:"myTag" display:"count" }

Query Render Assets (“insert-content-from-file”)

 Insert the content of a file as text block
 {query: insert-file-content target-file:"myFile.asdf" display:"inline-text" }


 Insert the content of a file as code block, and highlight the code
 {query: insert-file-content target-file:"myFile.asdf" display:"code-block" }


 Insert a video
 {query: insert-file-content target-file:"myFile.mp4" display:"video" }


 Insert an audio file
 {query: insert-file-content target-file:"myFile.ogg" display:"audio" }

Query Blocks

• Inserts a blocks, that contain a certain tag

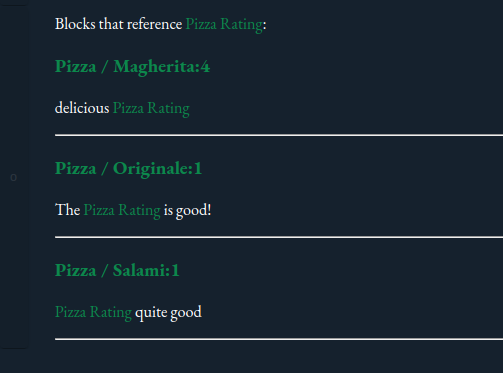

• paragraphs
  • Creates a section for every block in the markdown. The filename and block-index is rendered as headline (and link), the content of the block is rendered as paragraph. Paragraphs are separated by a horizontal line. Good for multi-line blocks

  • Query



  • Result

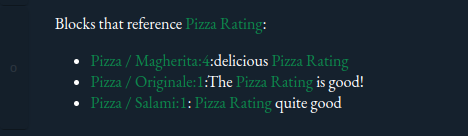

• inplace-list

  • Creates a list of the selected blocks in the markdown-block. Each item is prefixed with a list-icon. Best suited for single-line blocks.

  • Query



  • Result

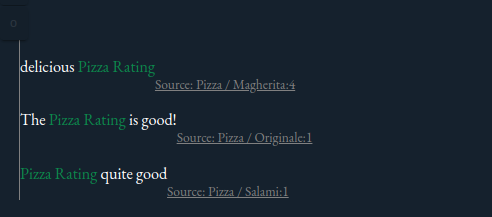

• referenced-list
  • Creates a list of the selected blocks at the end of the current block. Each item contains a link to the source file. Different query-results can be stacked. Good for multi-line blocks

  • Query



  • Result



• count
  • Creates a number of the selected blocks in the markdown-block.

History

Looksyk has a history feature that allows you to navigate to the previous and next page. The history is stored in the local storage of the browser and is not synchronized with other devices.

The history is displayed in the sidebar and can be dropped. The history is limited to 5 visible entries, but all entries are stored in the local storage.
